Derived within the top levels
of motorcycle road racing, remote (left hand)
adjust brake systems allow riders to compensate
for front brake system variations due to system
fade, and brake pad wear during race situations.
By locating the lever reach adjuster on the left
handle bar, the rider’s right hand is allowed
to deal with throttle control. Previously only
available for GP and Superbike machinery, the
CRG Roll-A-Click lever line has made this feature
available for Supersport and Superstock bikes.
The CRG Roll-A-Click lever line is designed for
OEM master cylinders. The Roll-A-Click Remote
Adjust Kit will convert CRG Roll-A-Click levers
for left hand position adjust.

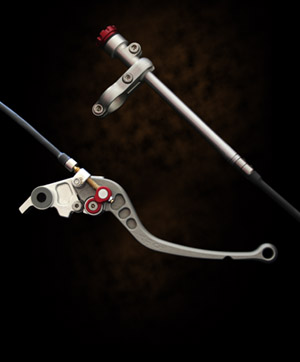

Three elements make up the Roll-A-Click Remote
Adjust Kit. First there is a wand assembly which
mounts a ball detent style “clicker”
adjuster knob on the left side handle bar. The
mounting clamp, as all of the parts, are produced
from machined billet aluminum. The clamp is
designed to mount on a 7/8" handlebar,
and holds the wand tube via spherical ball which
allows for infinite positioning of the knob.
The second element of the system is the flexible
shaft (cable). This flexible shaft is designed
specifically for transmitting torsional loads,
thereby feeding precise adjustment to the lever
assembly. The third element of the system is
the lead-screw adjuster which mounts on the
CRG Roll-A-Click lever.
The Roll-A-Click Remote Adjust Kit is sold
in kit form, and comes with all the necessary
parts and instructions required to convert the
standard Roll-A-Click lever to a remote adjust
system. For racing use only, will not allow
for use of all stock instruments and controls.
|
