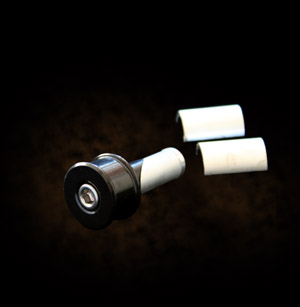

This is the Billet Internal Adapter for the
LS 3.2, LS 2.2, Arrow, Hindsight, Hindsight LS and Blindsight Billet
Bar End Mirrors. We make this assembly to offer
an alternative to the basic Bar End Mirror mount.*
The 7/8" Adapter kit assembly will work on bars with internal
diameters as small as 12mm (.475") and
as large as 19mm (.750"). This range covers
virtually all aluminum and steel bars/clip-ons.
*Whenever possible we recommend mounting the
Hindsight Billet Bar End Mirror with the basic
mount which clamps to the outer diameter of
a 7/8" handlebar/clip-on. Using the basic
mount is the bar end mirror solution using the
fewest parts, facilitates the easiest installation
and removal, is the lightest weight, and provides
for the most secure bar end mirror mounting.
Use of the basic mount requires having 10mm
(3/8") of bare bar outboard of the grip/throttle
assembly. Before purchasing the mirror adapter,
try moving your grips and controls inboard (away
from the end of the bar). In many applications,
the mirror can be mounted with the basic mount.
The 1" Adapter kit assembly will work on bars with internal diameters as small as 18.3mm (.720") and as large as 22.25mm (.876").
